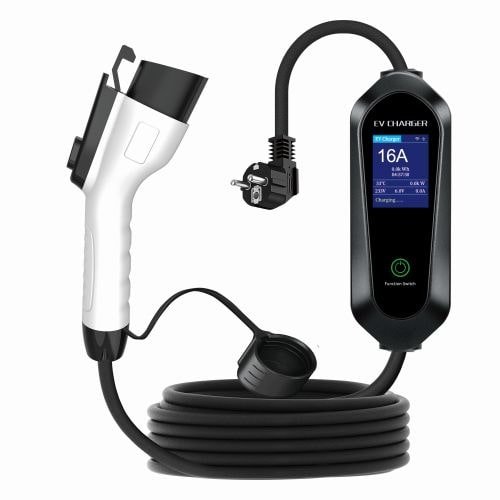

Electric car EV charger Type1 1 phase (3.7kW)

• Electric car battery charger
• Lockable
• Charging delay function (maximum 10 hours)
• Standard battery charger for electric cars with Type 1 connection
• LCD display, displays the current charging current, temperature and power consumption
• IP54 protection level (Protected against dust, Protected against splashing water from all directions)

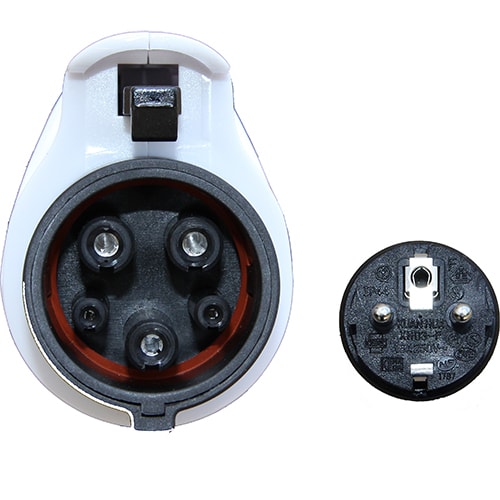

• 1. Type 1 (SAE J1772)
• 2. Schuko 230V Standard mains plug
• Cable length: 5 meters
• Number of phases: 1
• Current per phase: 8-10-13-16 A (variable)
• Memorizes the current used during the last charge, no need to set it for each charge
• Max. power: 3.7 kW
• Charging side connector: 230V standard
• Car side connector: Type 1
• The cable has TÜV, CE, UL approvals.
• This charging station has overcurrent protection, overvoltage protection, leakage protection and overheating protection
• This cable can be used to charge an electric car equipped with a Type1 connector at home
• Cable thickness: 3*2.5 mm² + 2*0.5 mm²
• Compatible with the following popular car models, among others:
• Audi USA modell | BMW USA modell | Chevrolet Bolt | Fiat USA modell | Fisker | Ford | Kia | Mercedes | Mitsubishi | Nissan | Peugeot | Renault | Renault | Tesla USA modell | Toyota | Opel | VW USA modell | ...
• Power source: 230V
• Dimensions: 100 x 6000 x 84 mm
• Weight: 2 kg
• datasheet

---
